Slit Lamp Microscope | Digital Ophthalmic Slit Lamp for Clinic | Manufacturer

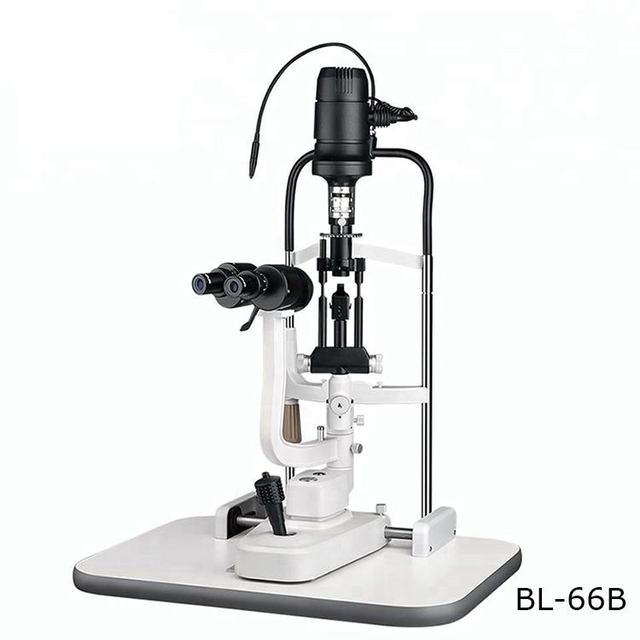

Ophthalmic Slit Lamp Microscope Five Magnifications Ophthalmology with Led Illumination Slit Lamp

6 customer reviews

Slit Height Continuously variable from 1mm to 14mm
Slit Width Continuous from 0mm to 14mm (at 14mm,slit becomes a circle)
Interpupillary distance adjustment range 52-82MM
Dioptric adjustment range -7D~+7D
The total magnification of the microscop 6x 10x 16x
Slit Angle 0°~ 180°adjustable
Origin Mainland China
Magnification Ratio 500X & Under
Drawtube BINOCULAR
Features High Definition

Request For Quotation

Description
Specification
Q & A
Customer Reviews
Shipping Policy
Warranty
Wholesale Inquiry

Ophthalmic Slit Lamp Microscope Five Magnifications Ophthalmology with Led Illumination Slit Lamp

Specifications:

Microscope	Microscope Type	Converging Stereoscope
	Magnifications	2 Steps magnifications
	Eyepiece	10x
	Magnification Ratio (Field of View)	16Ã—ï¼ˆÏ†14.5mmï¼‰ã€10Ã—ï¼ˆÏ†18ï¼‰
	PD adjustment	50mm ~ 82mm
	Diopter adjustment	+5D ~ -5D
Base	Side Shift	110mm
	Depth Shift	90mm
	Height Shift	30mm
Chin rest	Height Shift	80mm
Chin rest	Fixation Target	Red LED
Property of illumination	Slit width	0 ~ 9mm continuous(at9mm, slit becomes circle)
	Slit height	1 ~ 8mm continuous
	Slit angle Light spot diameter	0~ 180⁰ Adjustable Ð¤9 ã€Ð¤8ã€ Ð¤5 ã€ Ð¤3,Ð¤2 ã€Ð¤1 ã€Ð¤0.2mm
	Filter	Heat absorption ,Grey ,Red-free ,Cobalt Blue
	Illumination Bulb	12V 50W halogen lamp

Tags:
Slit Lamp, Slit Lamp Microscope, Ophthalmic Slit Lamp

Optical System

Type: Galilean system

Magnification Changer: Rotating drum change

Magnification:5 steps by drum rotation

Field of view: 16x(φ33)mm 10x(φ22.5) 16x(φ14)mm

Pupil Range: 52 - 82 mm

Diopter: ±7D

llumination

Slit Width: Continuous from 0 to 14 mm

Slit Length: Continuous from 1 to 14 mm

Slit angle: 0° - 180°

Slit Aperture: Continuous from 1 - 10 mm, φ14,10, 5, 3, 2, 1, 0.2 mm

Filter: Heat Absorption, Grey, Redfree, Cobalt Blue

Power

Input Voltage: 110-220V 50-60Hz

Input Power: 68VA

Dimensions and Weight

Dimensions: 700*460*440 mm

Net Weight: 16kg

Gross Weight: 18kg
