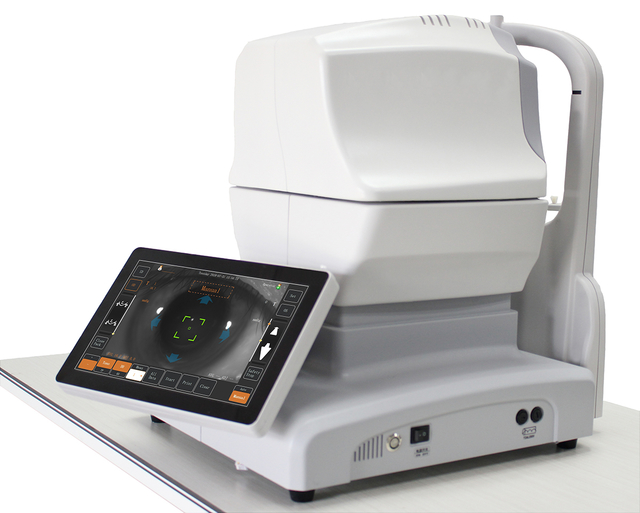

Hot Selling Ophthalmic Medical Equipment OCT-500 Ophthalmic Scanner Optical Coherence Tomography

0 customer reviews {{parseInt(detail_data.left_num) ? 'In Stock.' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}} SKU.195573
  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? detail_data.left_num +' In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

$   25,000
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{detail_data.displayed_price.ex_sell_type}}
{{ item.num }} pieces
$ {{ item.price }}
{{item.name}}* {{item.values[0].value}}
{{sku.value}}
Quantity:
{{detail_data.displayed_price.unit_type_name}}(s)
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
To Be Negotiated
to United States Change
Estimated delivery time : {{now_chooseship?now_chooseship.datemin:''}}-{{now_chooseship?now_chooseship.datemax:''}} working days. See details
Total Price:
$ 25,000
Shipping calculated at checkout.
Weight:
{{Number(packInfo.weight).toFixed(2)}} KG
Package:
{{packInfo.length}}cm*{{packInfo.width}}cm*{{packInfo.height}}cm
  • Description
  • Features:
    1.Compact Design: Everything is inside this compact body. No external computer is needed. Plug in the power cable, then you are ready to go.
    2.PC Inside: Data acquisition and processing are accomplished by the internal computer. The data can be transported via ethernet or external harddrive. Peripheral devices, such as keyboard or printer, can be connected to the computer ports.
    3.Easy Installation:No complex connection or setup. Compact body can fit in even small space.
    Hot Selling Ophthalmic Medical Equipment OCT-500 Ophthalmic Scanner Optical Coherence Tomography
    Hot Selling Ophthalmic Medical Equipment OCT-500 Ophthalmic Scanner Optical Coherence Tomography
    Hot Selling Ophthalmic Medical Equipment OCT-500 Ophthalmic Scanner Optical Coherence Tomography
  • Specification
  • Methodology
    Spectral domain OCT
    Axial resolution
    ≤ 6 µm (in tissue)
    Transverse resolution
    ≤ 20 µm (in tissue)
    Scan depth
    ≥ 2.5 mm (in air)
    Scan range
    ≥ 6 mm
    Scan speed
    ≥ 24,000 A-scans/sec, up to 36,000 A-scans/sec
    Scan modes
    30, Raster, Circle
    Fundus image
    OCT en face
    Focus adjustment
    -150 to +150
    Pupil diameter
    ≥ 3 mm
    OCT light source
    840 nm SLD
    Optical power
    750 µW (at cornea)
    Operation
    13.3’’touch screen, optional external mouse or keyboard
    Power supply
    100-240 V, 50/60 Hz
    Dimensions
    497 mm × 395 mm × 490 mm (L× W × H)
    Weight
    LED dot matrix
    External fixtion
    34 kg (75 lbs)
