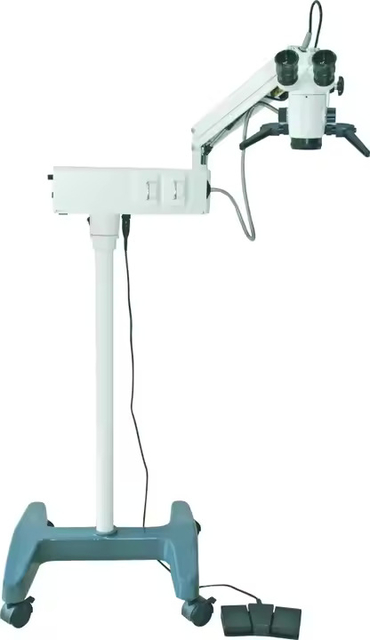

YZ-20T4 Top Quality Ophthalmic Operating Microscope with 5 Steps

Sku. 195581

$ 6,000

Quantity:: - +
piece(s)

Stock:: 4 in Stock

Shipping:: $ 34.8

Can't deliver

To Be Negotiated

to United States Change

Estimated delivery time : 0-27 working days. See details

Total Price:: $ 6,000 $ 0.00 (Save and Extra $0.00 )

Shipping calculated at checkout.

Buy Now

Add to Cart

Add to Inquiry List

/ piece

Request For Quotation Continue Shopping

This item is collected in wish list

Choose your location Shipping Inquiry

Ship to:

United States

Delivery Options and delivery speeds may vary for different locations.

Carrier

CostDelivery TimeTracking
EMS

$ 34.8 0-27 daysAvailable
Fedex IP

$ 44.65 3-27 daysAvailable
DHL

$ 53.93 0-27 daysAvailable
UPS Express Saver

$ 89.78 0-27 daysAvailable

You’ll see exact shipping costs and arrival dates when you checkout.

YZ-20T4 Top Quality Ophthalmic Operating Microscope with 5 Steps

Requirement Details

Your message must be between 20-3,000 characters!

Check your email

Phone

Check your phone number

Submit Requirement

Description
Specification
Q & A
Customer Reviews
Shipping Policy
Warranty
Wholesale Inquiry

Features:

1. Assistant microscope can be rotated to opponent microscope.
2. Internal beam splitter can be connected with teaching tube and CCD system.
3. Equipped with three different objective lenses (f200/f250/f300) and applicable in ophthalmic surgery, orthopedic surgery and hand surgery.
4. Oblique illumination can also be used as slit illumination and slit width is adjustable.

Specification
Model	YZ-20T4 Ophthalmic Operation Microscope
Eye piece Magnification	12.5x/18B
Working Distance	f200: 190mm; f250: 240mm; f300:290mm
Magnification for Main Microscope	f200: 4x, 6x, 10x,16x, 25x; f250: 3.2x, 5x, 8x, 12.8x, 20x; f300: 2.7x, 4.2x, 6.7x,11x, 17x
Magnification for Assistant Microscope	f200: 6x, 10x,16x; f250: 5x, 8x, 12.8x; f300: 4.2x, 6.7x,11x
Adjustable Diopter	±7D
Adjustable Range of Pupil Distance	50mm ~ 75mm
Focus for Assistant Microscope	≥ 30mm
Maximal Resolution	112LP/m
Illumination Source	12V/100W, Medical cold-reflection Halogen Lamp
Illumination Type	6°+0 °Coaxial illumination and, 25° Oblique Illumination (it can be used as slit illumination) Slit Width is adjustable and the angle is 360°rotation.
Coaxial Illumination	≥ 50000lx
Oblique Illumination	≥ 45000 lx
Reaching Radius of Arm	1040mm
Adjustable Vertical Range	850mm ~ 1350mm
Fine Focus Speed and Range	≤ 2mm/s, 50mm
Speed for X/Y and Range	≤ 2mm/s, 50mmx50mm
Input Voltage	AC 220V ± 10% /50HZ ±1HZ, AC 110V±10%/60HZ ±1Hz
Power	330VA
Fuse	AC 250V T4.0A(51S-040H), AC 110V T 8.0 A (51S-080L)
Electrical Safety Standard	Executive to GB 9706.1-2007, Class I
Packing Volume	0.727cbm, 5 cartons
Total Gross Weight	210kg

Ask a Question

No data

Customer reviews

Your reviews :

Share your thoughts with other customers

0/1000

Please write a review with more than 10 characters.

Allowed file types: JPG, JPEG, PNG, GIF.

Anonymity

No data

Processing time

According your order list. we will supply delivery time .

Commonly is 5-7 work days after we confirm payment

Shipping time

By Express : 3-7 days . Door to door service

By Air : 3-7 days . (the goods arrival at your local air ports

By sea : 30-40 days (the goods arrival at your local sea ports )

PS : by air or by sea, if you need door to door service, please tell us . we will help you checking the extra door to door cost.

How many months warranty do you provide ?
one year

What should I do if the machine have question ?
For ensuring all the items are in good quality, we will test all products before the packages were sent out. Once the machine have some question, please don't worry. kindly send us some images of the situation , Video and machine series, and explain the question in where . we will supply solution to you deal soon.

What should I do if the spare parts is broken in Warranty ?
If in Warranty, some spare parts broken in the Use. kindly supply picture or video , and machine series number .

We will send the spare parts by express to you soon.. and we bear express cost .
