1. Avarious of materials of the lens can be processed, rapid edging to be molding . 2. Bevel or platband can be polished . 3. Various grinding pressure meet the demands of different lenses. 4. On-line function . Tracing system 1. set the optical scan, the center of positioning as one . 2. It takes 0.5 seconds to get the frame shape of the frame. 3. Real-time imaging guidance confirms whether the best center position is reached. 4. Automatically eliminate the lens degree, prism and artificial parallax effect. 5. High resolution 1280*800 tru color 7 inch touch screen. 6. At the same time connect two RS8000 automatic milling machine composed ofprocessing center. 7. Simple operation , low failure , maintenance-free.
Tracing system 1. set the optical scan, the center of positioning as one . 2. It takes 0.5 seconds to get the frame shape of the frame 3. Real-time imaging guidance confirms whether the best center position is reached. 4. Automatically eliminate the lens degree, prism and artificial parallax effect 5. High resolution 1280*800 tru color 7 inch touch screen 6. At the same time connect two RS8000 automatic milling machine composed ofprocessing center 7. Simple operation , low failure , maintenance-free.

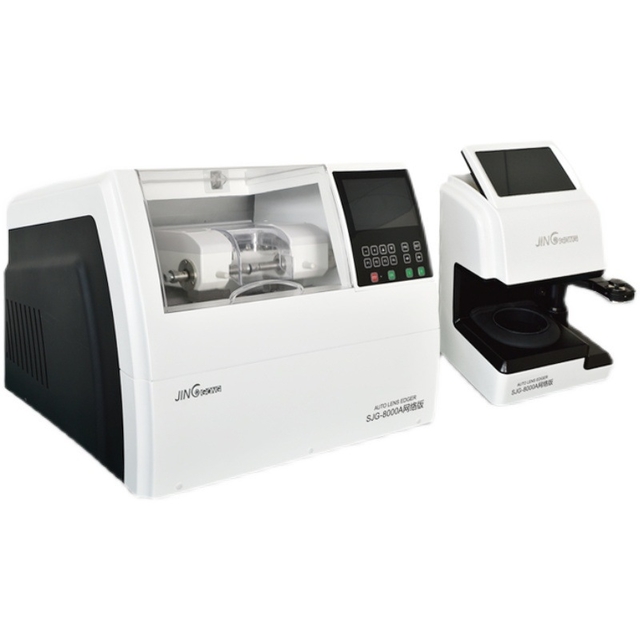

Auto lens edger Technical Data Dimesion :625mm*510mm*510mm Weight :49kg Voltage :AC 220V/110V , 50/60Hz. Power :550W Lens size range :Diameter 22-80mm Clamping pressure: Third gear adjustable Wheel diameter :100mm
Auto lens scanner Technical Data Dimension:240mm*180mm*130mm Weight:5kg Voltage:AC 220V/110V 50/60Hz Power :60W Screen tilt angle :20°-100° Touch screen :7” capacitive screen Quantity of connecting with the main machine:2 unit.
